            API Cast steel Trunnion Type Ball Valve

            Product model: Q347F
            Nominal diameter: DN50~700mm
            Nominal pressure: PN1.6~6.4MPa
            Applicable temperature: -28 ℃~300 ℃
            Applicable media: water, steam, oil, nitric acid, acetic acid
            Drive mode: manual or pneumatic


            Contact us
            • Product Details
            • Service details
            • Ordering process
            Product Design Features

            Serial floating ball valves are mainly applied to natural gas,oil products,chemical engineering,metallurgy,city building,environment protection,pharmacy and food industries, among which the anti-sulphur series are used for long delivery pipes of natural gas that contains hydrogen sulphide medium,a lot of impurity and corrosive substances.


            The main structure features include

            1.Construction of the shell

            The valve bush of the stationary ball valve can be designed to three types:casting construction, forging construction, and full welding construction,according to user's demand or different working condition.And the ball valve of the full welding construction is mainly applied to underground operation.


            2.The unique sealed structure of valve seat

            Pre-ball sealed structure,post-ball sealed structure or pre-post-ball double sealed structures are available for choosing to different pressure,medium properties,and sealing  requirements of the fixed ball valves.


            3.Automatic pressure-relieving structure

            When an abnormal rising of pressure appear in the hollow cavity,the single sealed-structure takes on the function of automatic pressure relieving,whiie the double-sealed structure can finish the job through a attached pressure-reliving  device to the valve body.


            4.Emergent repairman for the sealed structure

            When leak was caused by damage on the valve seat or valve stick,the sealed grease injected through the grease feeding valve can seal the valve at once.


            5.Fire-resistant Structure

            According to the operating condition and user's requirement,ball valve can be designed with a fire-resistant structure up to the fire resistant standards of API607,API 6FA and JB/T6899.Once the soft seal ring is burnt out on fire,the structure can avoid serious leaking of the medium and prevent the fire from scaling up.


            6.Anti-static Structure

            While operating the valve,the friction between the sphere and the base will produce static charges accumulating on the sphere.To avoid static sparkle,the fire-resistant device is designed to derive the accumulated static sparkle,charges from the sphere.


            7.Jam and release

            When the valve is close,the valve seats will stop the effluence,and the precipitate in the can be released through the releasing device.


            8.Locking Device

            A locking structure is designed on the full-open and full-close spots of manual ball valves to avoid abnormal open-and-close produced by miss-operation or unpredictable circuit vibration.On production lines of petroleum and chemicals of flammable mediums,and during the course of outdoor piping,the design is especially advantageous and practical.


            9.Full Drift Diameter Structure and Retractive Diameter Structure

            The two structure series are produced to meet different requirement of users,The passage inside diameter of full diameter ball valves is the same as that of valve pipe,which is convenient for pipe cleaning.The weight of retractive diameter ball valves is relatively lighter,but the fluid resistance is just 1/7 that of stop valves with the same caliber.Therefore,the application prospects of retractive diameter series is much better.

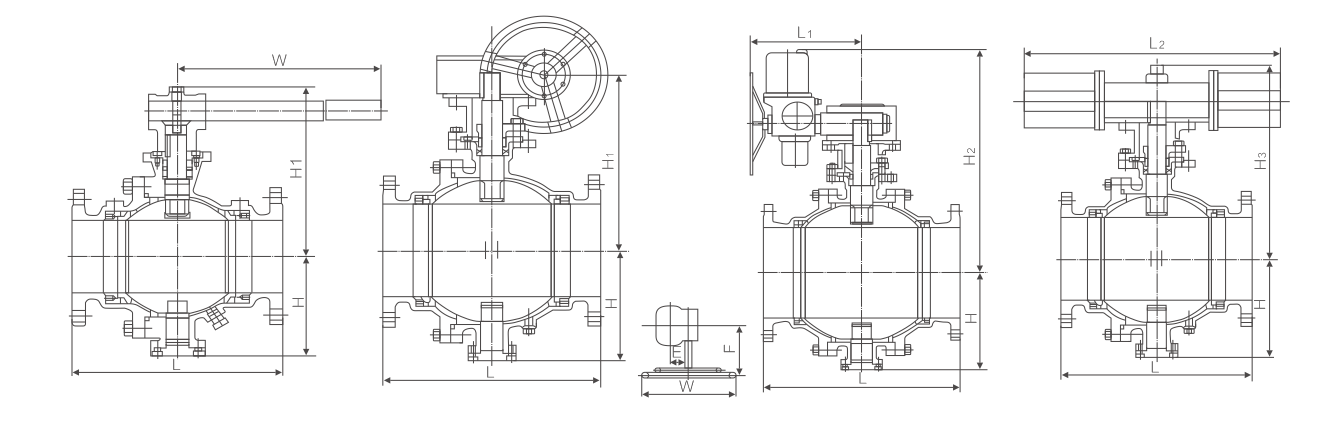

            Main external connection dimensions  PN16

            DN(mm)

            25

            32

            40

            50

            65

            80

            100

            125

            150

            200

            250

            300

            350

            400

            450

            500

            600

            700

            d1

            25

            32

            40

            50

            65

            80

            100

            125

            150

            200

            250

            300

            337

            387

            438

            489

            591

            686

            L

            140

            165

            165

            203

            222

            241

            305

            356

            394

            457

            533

            610

            686

            762

            864

            914

            1067

            1245

            H

            50

            55

            80

            102

            114

            127

            152

            184

            219

            273

            360

            395

            430

            470

            550

            580

            700

            800

             Manual

            H1

            75

            85

            95

            107

            125

            152

            178

            300

            330

            398

            495

            580

            625

            670

            698

            840

            1050

            1100

            E

            -

            -

            -



            -

            -

            -

            -

            -

            116

            116

            171

            171

            257

            257

            257

            150

            83

            F

            -

            -

            -



            -

            -

            -

            -

            -

            350

            350

            400

            420

            400

            420

            400

            410

            650

            W

            160

            160

            230

            230

            400

            400

            650

            1050

            1050

            600

            600

            800

            800

            800

            800

            800

            800

            800

            WT(kg)

            4.5

            5.7

            7.0

            12

            16

            22

            35

            58

            74

            205

            322

            460

            576

            864

            1280

            1600

            1600

            4500

            Electric

            H2

            -

            -

            -



            -

            -

            -

            -

            554

            600

            652

            760

            770

            830

            -

            940

            940

            1115

            L1

            -

            -

            -



            -

            -

            -

            -

            235

            235

            235

            259

            400

            400

            -

            410

            410

            410

            Pneumatic

            H3

            215

            240

            264

            274

            379

            389

            479

            552

            666

            736

            926

            1059

            1127

            1393

            1468

            1538

            1538

            1450

            L2

            200

            270

            270

            270

            405

            405

            576

            576

            776

            776

            776

            1060

            1060

            1360

            1360

            1360

            1360

            2840
