Stainless steel lift check valve

Your location：Home >> Guanhuan Valve >> Valve center >> Check valve series

Stainless steel lift check valve

Product model: H41W

Nominal diameter: DN32~200mm

Nominal pressure: PN1.6~10.0MPa

Operating temperature: -29°C~200°C

Applicable medium: water, steam, oil, nitric acid, acetic acid

Contact us

Product overview

The valve body structure of the stainless steel lifting check valve adopts the valve body of the globe valve, and the valve disc moves along the line in the channel, which is reliable, but the fluid resistance is large, and is suitable for light and small caliber occasions. Straight-through lift check valves can generally only be installed in horizontal pipelines, while vertical lift check valves are generally installed in vertical pipelines. Products are widely used in petroleum, chemical, pharmaceutical, power industry and other working conditions of the pipeline.

Product characteristics
1, check valve product design and manufacturing according to GB/T 12235 design and manufacturing inspection, reliable sealing, excellent performance.
2, the sealing surface of the valve disc and seat is made of stellite cobalt-based cemented carbide surfacing, wear resistance, high temperature resistance, good abrasion resistance and long service life.
3. Various pipe flange standards and flange sealing surface types can be used to meet various engineering needs and user requirements.
4, the body material variety is complete, fillers, gaskets according to the actual conditions or user requirements reasonable selection, can be applied to a variety of pressure, temperature and medium conditions.
5, can be manufactured according to user requirements of different structural forms and connection forms of check valves, for various equipment supporting use.

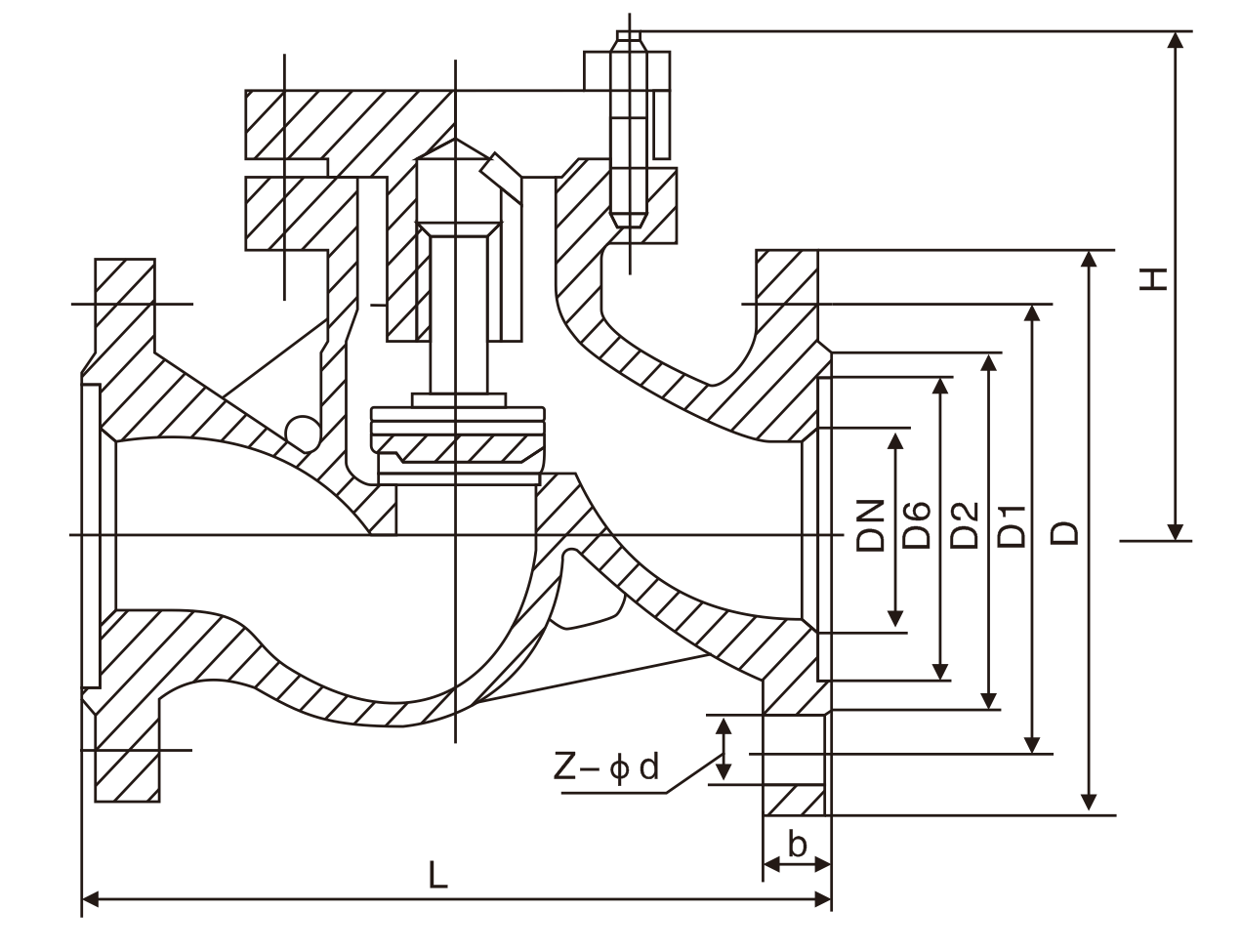

Main outer size

Nominal diameter	Main dimensions and connection dimensions
Nominal diameter	L	D	D1	D2	b	Z-d	H
H41H-16C H41W-16C H41W-16P H41W-16R H41W-16I
15	130	95	65	45	14	4-14	77
20	150	105	75	55	14	4-14	77
25	160	115	85	65	14	4-14	80
32	180	135	100	75	16	4-18	85
40	200	145	110	85	16	4-18	95
50	230	160	125	100	16	4-18	105
65	290	180	145	120	18	4-18	120
80	310	195	160	135	20	8-18	130
100	350	215	180	155	20	8-18	140
125	400	245	210	185	22	8-18	155
150	480	280	240	210	24	8-23	180
200	600	335	295	265	26	12-23	215
250	730	405	355	320	30	12-25	260
300	850	460	410	375	34	12-25	315
H41H-25 H41W-25 H41W-25P H41W-25R H41W-25I
15	130	95	65	45	16	4-14	100
20	150	105	75	55	16	4-14	105
25	160	115	85	65	16	4-14	120
32	180	135	100	78	18	4-18	130
40	200	145	110	85	18	4-18	135
50	230	160	125	100	20	4-18	149
65	290	180	145	120	22	8-18	160
80	310	195	160	135	22	8-18	169
100	350	230	190	160	24	8-23	194
125	400	270	220	180	28	8-25	222
150	480	300	250	218	30	8-25	255
200	600	360	310	278	34	12-25	305
250	730	425	370	332	36	12-30	355
300	850	485	430	390	40	16-30	410
